About the Temco RA-150 Transmitter
- Temco ➙ Transmitter Equipment Mfg. Co., 345 Hudson Street, New York, N.Y.
- The basic tube lineup is an Eimac 4-65A tetrode modulated by four 6L6's in push-pull parallel, yielding a 100 watt output.
- The RA-150 transmitter was highly configurable by the user.
- The cabinet color was two-tone green.

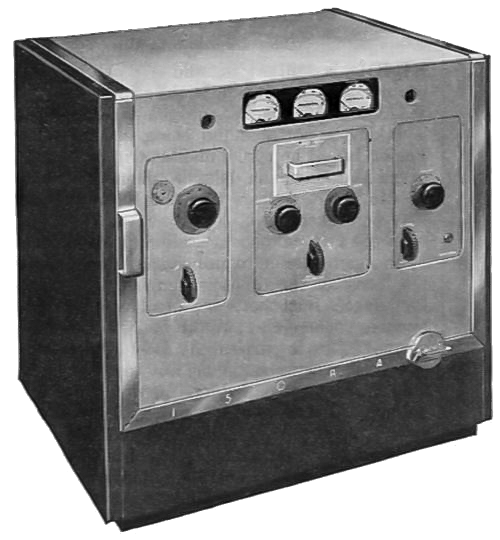

The Temco RA-150 Transmitter

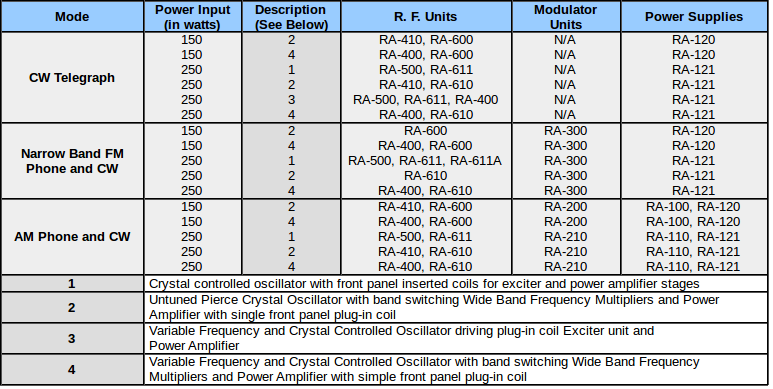

RA-150 Transmitter Configuration Options
- Model RA-400 ➙ Frequency Meter Type Variable Frequency and Crystal Controlled Oscillator Unit Complete with Regulated Power Supply
- Model RA-410 ➙ Pierce crystal Oscillator Unit
- Model RA-500 ➙ Crystal Oscillator and double buffer w/front panel coil assembly and one coil for each band
- Model RA-600 ➙ Power Amplifier stage 150 watts input using a 4-65A PA and wide band frequency multipliers
- Model RA-610 ➙ Power Amplifier stage 250 watts input using an RCA 828 PA and wide band frequency multiplier
- Model RA-611 ➙ 250 Watt Input Final Amplifier Stage, similar to Model RA-61O, but Without Wide Band Multipliers. With Coil For Any One Band.
- Model RA-611A ➙ 28 Megacycle Plug-in Frequency Doubler Stage (Required Only With Model RA-611 when Model RA-300 NBFM Unit Is Used)
- Model RA-200 ➙ Speech Amplifier-Modulator for AM phone operation, for use with RA-600 Amplifier Unit
- Model RA-210 ➙ Speech Amplifier-Modulator for AM Phone operation, for use with RA-61O and/or RA-611 Amplifier Unit.
- Model RA-300 ➙ Narow Band Frequency Modulation Unit, employing phase modulation of direct crystal controlled oscillator with built-in frequency deviation meter
- Model RA-100 ➙ Audio Power Supply for use with RA-200 AM Modulator Unit
- Model RA-110 ➙ Audio Power Supply for use with the RA-210 AM Modulator Unit
- Model RA-120 ➙ Dual Low Voltage~High
Voltage Power Supply, for use with RA-600 RF Unit
- Model RA-121 ➙ Dual Low Voltage - High Voltage Power Supply, for use with RA-61O and RA-611 RF Units
- Model RA-150 ➙ Deluxe six section cabinet with hinged front door, three meters, two pilot lights, built-in channelling for auto-
matic insertion of chassis units, antenna change-over relay and remote control box
